2021 Summer Semester Flying Robot Project Team D Article 5June 30, 2021 The University of Tokyo

620

June is over in an instant. This is Kikuchi.

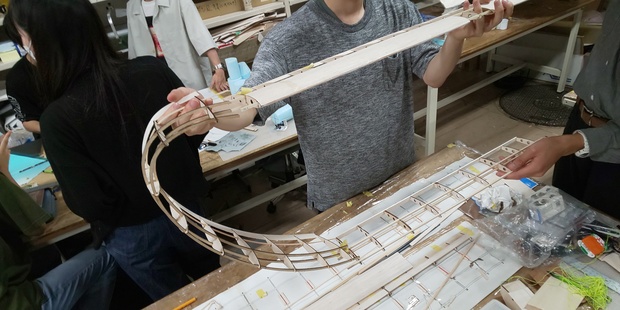

Today we assembled the tail wing and curved wing. In addition to the curved flanges made of plywood and balsa that we cut beforehand, we attached cypress sticks and balsa boards to the trailing edge by bending them, and one curved wing was successfully completed. Thanks to designing the jig elaborately, we were all very pleased with the beautiful curved wing. The main wings were surprisingly larger than I thought.
Next time, we will apply the film to the wing.
六月が一瞬で終わってしまいました。菊池です。
今日は尾翼と湾曲翼を組み立てました。事前に切っておいたベニヤ&バルサの湾曲フランジに加え、後縁側にヒノキ棒やバルサ板を曲げ木で取り付け、無事湾曲翼が一つ完成しました。治具を凝ったおかげできれいな湾曲翼ができて一同ご満悦です。そして実物を目にすると意外と主翼がデカイ。
次回は翼のフィルムを貼っていきます。

|
