2016 summer semester Flying Robot Project 3rd Team D April 27, 2016

620

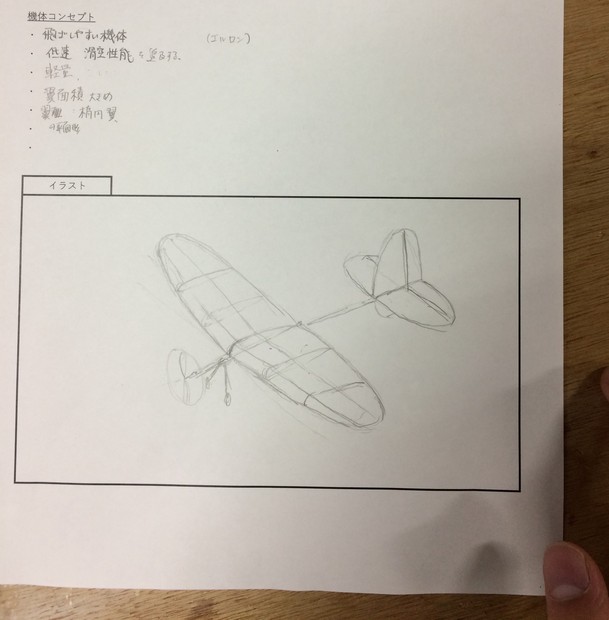

In this week, our team discussed the concepts of our plane, and made the initial three-view drawing. It was the first group activity on this project. We brought everyone’s ideas together and decided our team’s concepts. As a result of the discussion, we decided to make a plane that can fly stably at low speed. And also, we set a goal to lighten the plane as soon as possible in order to increase the payload. To put the concept into practice, our team is going to make a plane that has large wing areas.
At first, we had little knowledge about aircraft because we had never produced a model plane, but through the discussion, we investigated various things about the performance calculation of the planes and understood aircraft design more.
Although we created the initial three-view drawing and decided the guideline of design, we didn’t determine how to design the structures of the plane, what kind of materials we should use, where to set parts ,and so on. So we have to discuss the detailed of the structures and materials in next week.

Takeshi Tsujino
Department of Aeronautics and Astronautics
今週は初めてのグループでの活動となった。最初の活動として、メンバー個々人の考えた飛行機のコンセプトをすり合わせて、グループとして制作する飛行機のコンセプトを決定した。コンセプト決定後、初期三面図を作るために、飛行機の重量推算、必要揚力計算等を行って、飛行機の主翼翼面積などの諸元を決め、図面を書き上げた。
メンバーのうちほとんどが飛行機制作の経験が無いため、設計の知識等が不足していたが、配布された資料等を参考にしたり各自調べたりして、飛行機設計の理解を深めることができた。
初期三面図は今週のワークで何とか書き上げられたが、構造部の材料や細かい部品配置等はまだ決めていないので、来週以降のワークで決めていきたい。


工学部航空宇宙工学科3年
辻野 建資

|
