2016 winter semester Flying Robot Project 8th Team BDecember 14, 2016

620

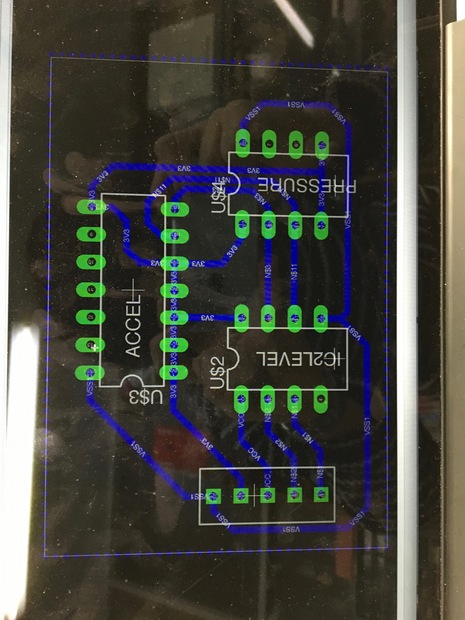

This week, we designed a part to mount the circuit board. We also soldered the electronic components on the prototype of the circuit board.
In the last class, we discussed how to attach the circuit board to the body. We decided to make a component made of styrene foam and attach devices such as servomotors and the receiver, other than the circuit board. We will start producing it in the next week.
On another day, we start soldering the electronic components on the prototype of the circuit board. It was very difficult for us to solder chip resistors because they were too small to handle. Though we were supposed to use chip resistors to reduce the weight of our plane, we may use normal resistors for this inconvenience.
We have two more weeks for the debut flight. From the next week, to complete the plane, we will make some small parts and do some adjustments.

Kota Dohi
Junior Student
Department of Aeronautics and Astronautics
 今週は回路基盤を搭載する部品の設計と基盤の半田付けを行いました。
 回路基盤の搭載部品はサーボモータや受信機搭載部を含めた一体型とすることとなりました。
 半田付けではチップ抵抗などのチップ素子をつけるのが難しいことが判明しました。
 二週間後の初飛行に向けて残りの部品の製作及び各部品の調整を行います。

工学部航空宇宙工学科3年
土肥 宏太

|
