2019 Spring Semester Flying Robot Project Team B Article 7June 12, 2019

620

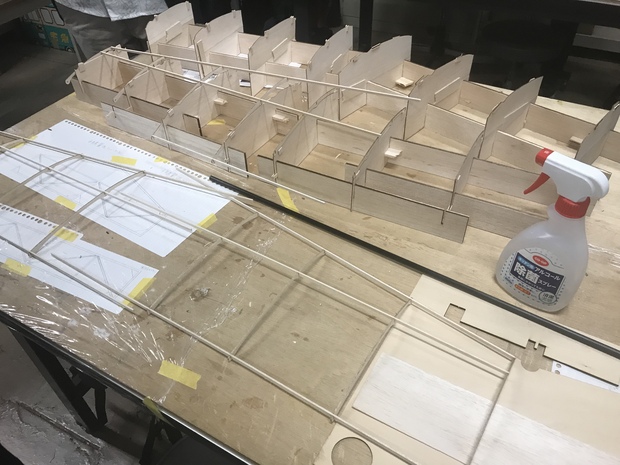

We are team B of Flying Robot Project 2019 and making a double-wing aircraft which uses ailerons to control the position. As we made a main wing by hands last week, its accuracy became terrible (the wing warped a lot). Because of this happening, it was found that we must make foundations of main wings. Then, we designed four foundations with Fusion360 and made them this week. Owing to making these foundations, it became possible to make main wings in a high accuracy.
It was scheduled to finish making two main wings and to paste together. However, a laser cutter didn’t work well so our schedule didn’t get on well and we just finished making frameworks of main wings.
In addition, we started to prepare an electric circuit for control our aircraft.
Next week, we are going to do overtime work to finish making the whole airframe.
私たちは飛行ロボットプロジェクトBチームで、エルロン制御の複葉機を作成している。前回手作業で主翼を組んで大きく歪んでしまったことから、上下翼の左右それぞれの土台の作成が決まり、今回までにfusion360で部品を設計し、計四個の土台を作成した。これによって精度の高い主翼の骨組みを作ることができた。予定としては、主翼を上下貼り合わせるところまで行う予定だったが、レーザーカッターの調子が悪く、部品作成が難航したため思うように進まず、主翼の骨組みを作るところまでしか終わらなかった。また、機体設計と並行して、回路の作成も始めている。次回には機体をおおよそ完成させる予定で、時間外作業も行う予定だ。

|
