REPORT

2015 summer semester team C 6thJune 24, 2015

620

Weekly report from team C.

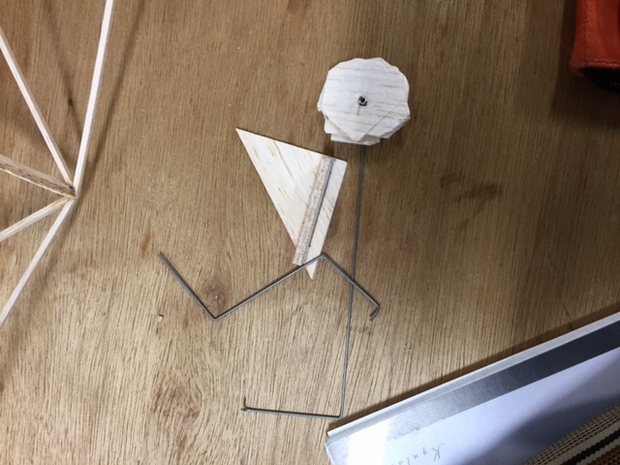

On June 24th, we made connecting structure of wheel and rib with piano wire, wheels by putting a sheet of plywood between balsa plates, tail unit-body junction, trailing edge of main wing-body junction. We designed wing-body junctions to be removable, but when we assembled them in practice, they were hard to remove, so we filed them for them to be removable.

Department of Aeronautics and Astronautics
Hisataka Iwamoto
 6月24日、我々はピアノ線で胴体と車輪をつなぐ部分、ベニヤ板をバルサ板で挟んだ構造の車輪、尾翼と胴体の結合部分、主翼後縁と胴体の結合部分を作った。我々は翼胴結合部を翼と胴体がうまく取り外せるように設計したのだが、いざ組み立ててみると大きさが微妙に噛み合ずに取り外しが難しかったので、ヤスリで削って翼胴がスムーズに取り外せるようにした。

工学部航空宇宙工学科
岩本 尚宜

|
