2024 Winter Semester Flying Robot Project Team B Article 3November 27, 2024

620

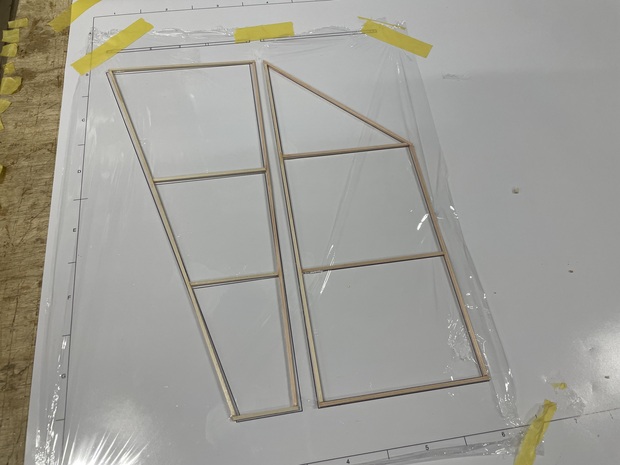

This week, we constructed the tail assembly. First, we created a CAD design of the tail, then printed it at full scale using a large-format printer. A layer of plastic wrap was placed over the design, and bamboo sticks were laid along the traced lines. The sticks were temporarily secured with masking tape and bonded using instant glue. The process required meticulous attention to detail to ensure that all parts aligned accurately. Reinforcements were added to strengthen the joints. By the end of the session, the tail assembly was complete and ready for attachment to the airframe. 今週は尾翼の組み立てを行いた。まず、尾翼のCAD設計図を作成し、大判プリンターで原寸大に印刷した。設計図の上にラップを敷き、トレースした線に沿って竹の棒を並べた。棒はマスキングテープで仮止めされ、瞬間接着剤で接着された。すべてのパーツの位置が正確に合うよう、細部まで細心の注意を払う必要があった。接合部を強化するために補強材が加えられた。作業の終わりには、尾翼の組み立てが完了し、機体に取り付ける準備が整った。

|
