This week, work was divided into two groups: members working on the main wings and members working on the tail fins.

I was in charge of the main wing, so I will report progress mainly on the main wing.

First, we attached a bamboo string to the leading edge of the wing. After that, we discussed with the members and decided what to put on the upper part of the wing and how. After discussion, it was decided to use balsa wood for the entire surface of the wing, taking into account its strength, weight, and ease of construction. The reason behind this was the concern that if balsa material was applied to only part of the wing, it would cause bumps on the surface of the wing when the film was applied, and the weight increase was found to be only about 10 g per wing.

Since the balsa wood is straight at first, bending it and gluing it back together will cause the balsa wood to try and peel, so it was discussed to wet it with water, bend it, and then apply it. It was decided to do this next week if the part temporarily glued this week peels off next week.

I also drilled holes in the ribs when I designed them so that carbon pipes could be passed through them if the strength was not sufficient. However, since the balsa material will be applied to the entire surface, it seems that it will not be necessary to put the carbon pipe through the ribs.

This week I saw the actual servo that will be used for the first time and was glad to see that it is smaller than expected and does not seem to affect the weight much.

Finally, as I write about the progress of the work to build the tail fin, the members working on the tail fin were stretching the film to the vertical tail fin and testing the joining of the horizontal and vertical tail fins. 今週は、主翼の作業を行うメンバーと、尾翼の作業を行うメンバーに分かれて作業を行った。

私は主翼を担当したので、主翼をメインに進捗を報告する。

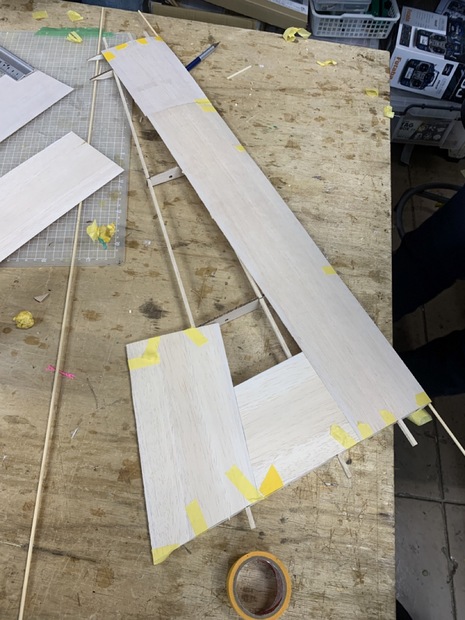

まず、翼の前縁に竹ひごをつけた。その後にメンバーと相談して、主翼上部に何をどう張るか決めた。議論の結果、強度、重量、作りやすさを加味して、バルサ材を全面に張ることに決定した。背景にある事情は、バルサ材を翼の一部のみに張るとフィルムを貼った時に翼の表面に段差が発生することが懸念されたことと、重量の増加も片翼当たり10gほどですむとわかったことだ。

バルサ材は最初はまっすぐなため、曲げて接着するとバルサ材が戻ろうとして剥がれてしまうので、水で濡らして曲げてから貼ることが検討された。今週は片翼の7割をマスキングテープで仮止めしたので、来週来た際に剥がれていなければ濡らす作業は行わずにバルサ材を貼り付けることにした。

また、強度が不足したときにカーボンパイプを通せるようにリブに穴を開けておいたが、バルサ材を全面に貼るので、カーボンパイプを通す必要はなさそうだ。

今週、私は初めて使用するサーボの現物を見たが、思ったより小さく、重量にあまり影響しなさそうで良かった。

最後に、尾翼について、尾翼を作業しているメンバーはフィルムを垂直尾翼に張る作業を行い、水平尾翼と垂直尾翼の接合をテストしていた。

|
